View our standard range of UT test blocks

At NDT Equipment, our main focus is supplying  quality products, on time. We hold an extensive range of standard UT blocks in stock ready for immediate dispatch, all meeting the relevant standards and dimensional tolerances required. For any that we do not have in stock, we are able to offer quick turnaround times to help with those urgent jobs!

We manufacture ultrasonic standard and special test blocks and test pieces, all to the most recent and up to date standards including No.1/V1s to EN ISO 2400:2012, No.2/V2s to EN ISO 7963:2010 and Ladder Step Wedges to 16946:2017.  All can be supplied in any material that you require.  Specials are manufactured to customer specifications.

We follow our strict quality assurance system (ISO 9001:2015) and provide full traceability and certification with all of our products.

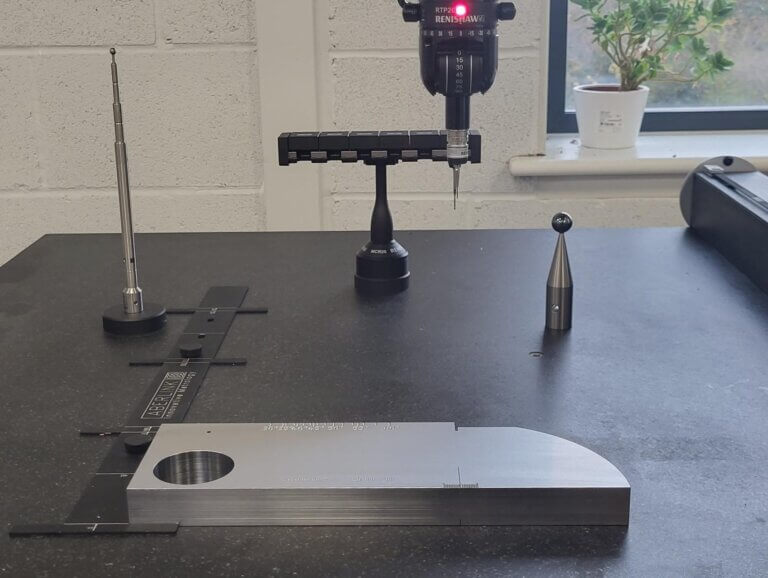

We offer a full in-house measurement report using our CMM (Co-ordinate Measuring Machine) However, where UKAS is required, we can provide a full independent UKAS certification using one of our trusted suppliers.

Products

Calibration Blocks

Please take a look below at our standard range of UT test blocks. We hold a large range of stock of these items in various materials, so give us a call and we might just be able to help you out.

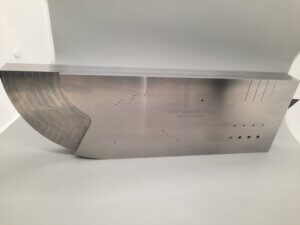

Calibration of shear and compression wave probes. Checking Beam angle, emergent point and resolution. Calibration of time base and gain settings. 3mm Target Hole

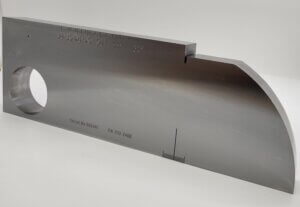

BS EN ISO 2400:2010

Tolerances ±0.1mm

Optional thickness 50mm

Calibration of shear and compression wave probes. Checking Beam angle, emergent point and resolution. Calibration of time base and gain settings. 1.5mm Target Hole 3mm Target Hole

BS EN ISO 2400:2010

Tolerances ±0.1mm

Optional thickness 50mm

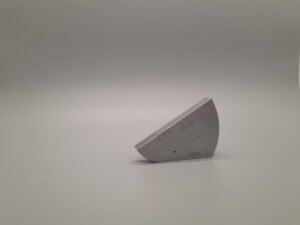

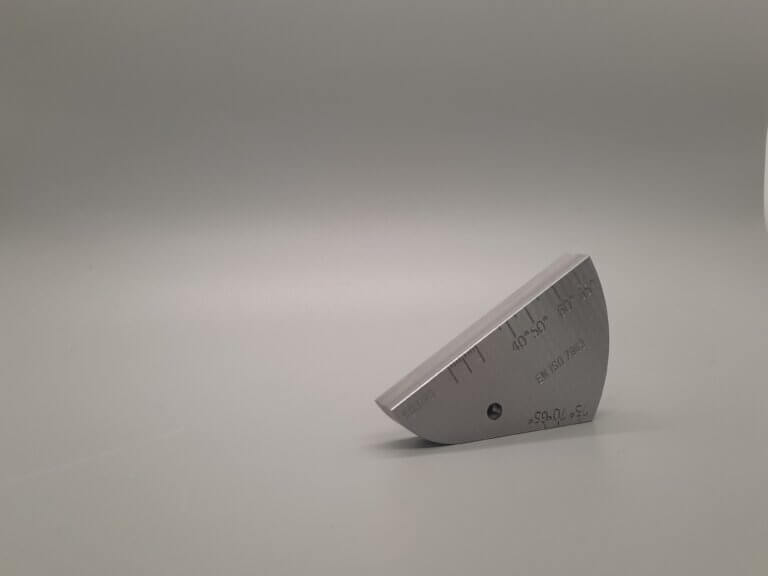

Small calibration block for site checking of shear wave probes, time bases and gain settings
5mm Target Hole

EN ISO 7963 2022

Tolerances ±0.1mm

Optional thickness 20 & 25mm

Small calibration block for site checking of shear wave probes, time bases and gain settings 1.5mm Target Hole

EN ISO 7963 2010

Tolerances ±0.1mm

Optional thickness 20 & 25mm

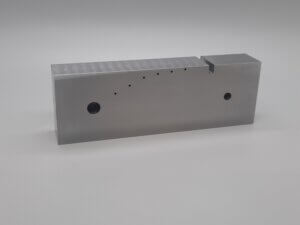

Beam profile and resolution checks for shear wave probes. Sensitivity checks for shear and compression probes. 9 off 1.5mm diameter holes BCB-N contains four additional 1.5mm diameter holes

BS 2704

Tolerances ±0.1mm

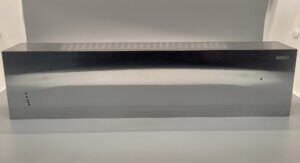

Evaluating dominant frequency pulse length, dead zone and resolution power for shear and compression probes.

BS 2704

Tolerances ±0.1mm

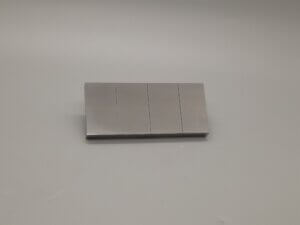

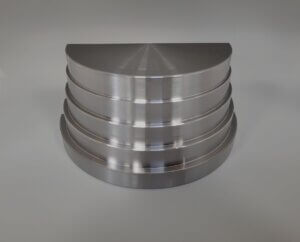

Checking shear wave probe resolution.
Steps of 2, 3, 4 and 5mm.

BS 2704

Tolerances ±0.1mm

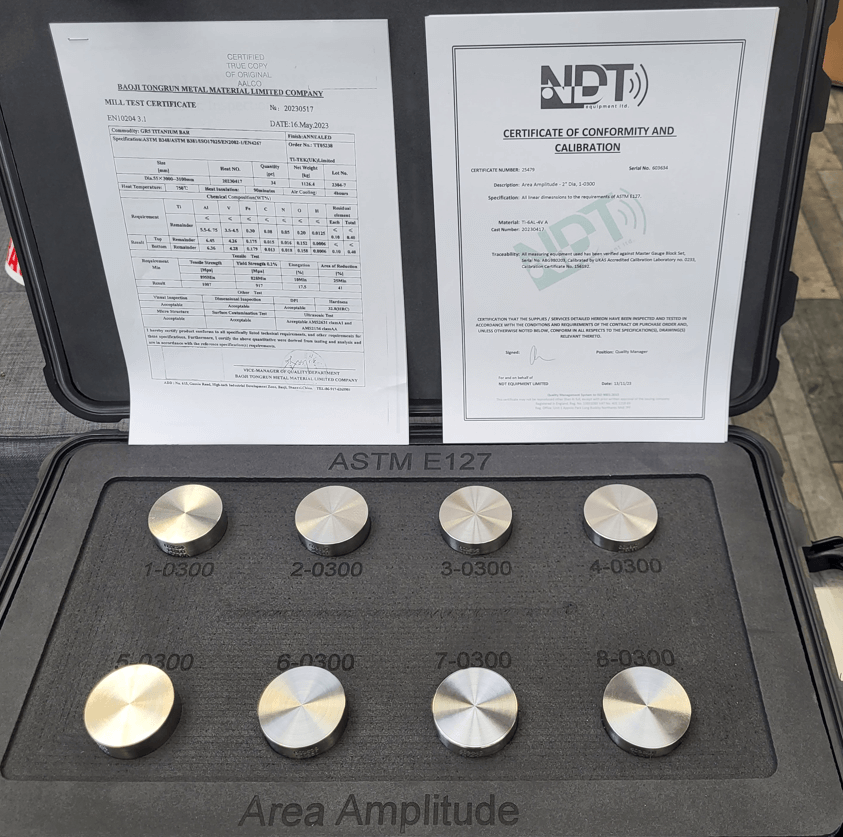

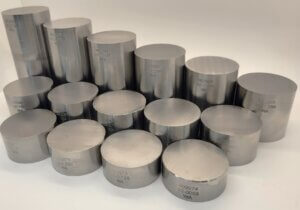

In accordance with ASTM E127 – sets of flat bottom hole distance and area amplitude blocks

E127/E428

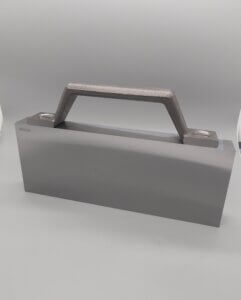

Designed specifically for AC magnetic yokes to confirm the yoke has sufficient strength to perform magnetic particle inspections

standard weights=`4.5kg/18.5kg

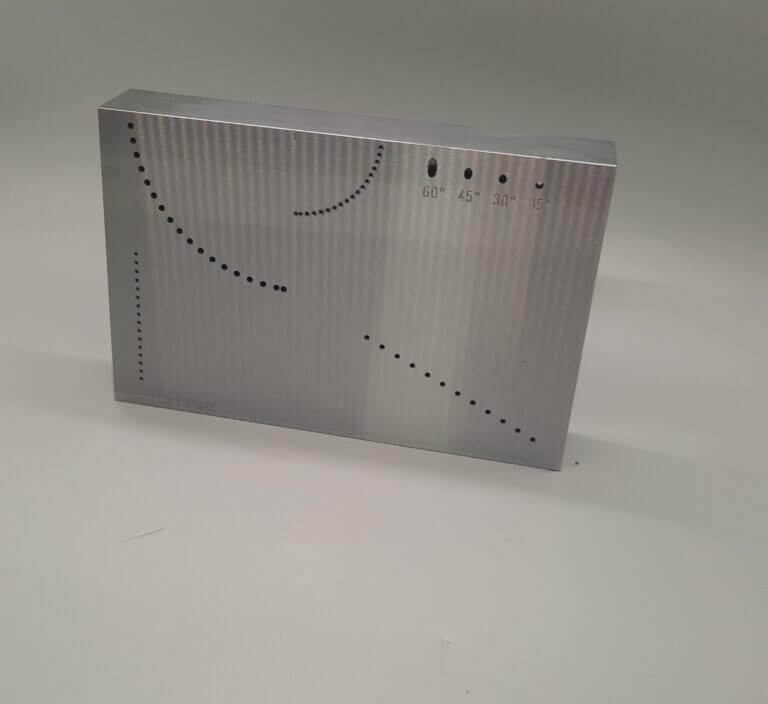

Calibrated Phased Array and ultrasonic flaw detection

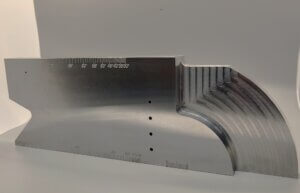

Standard – ISO 19675

Tolerances ±0.1mm

Calibrated Phased Array and ultrasonic flaw detection

Tolerances to ASTM E2491

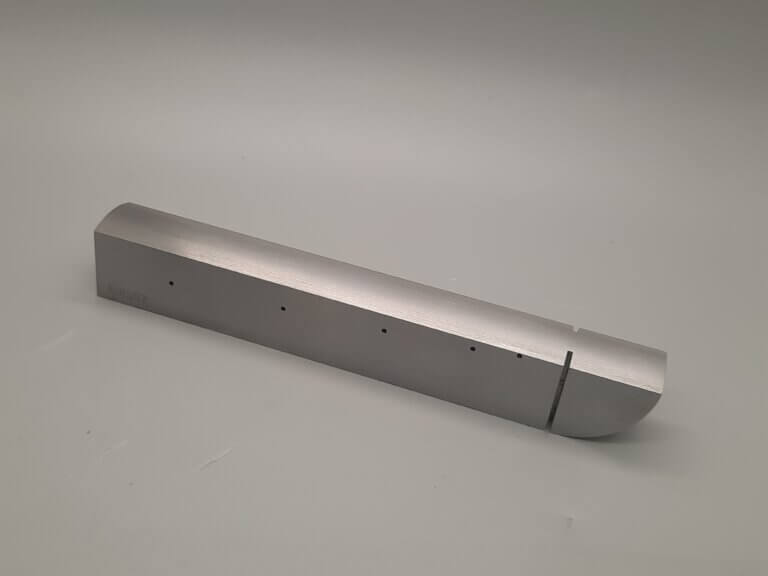

For Calibration of boiler probes.
Available with 3 or 5 x 1.5mm diameter holes.

Tolerances ±0.1mm

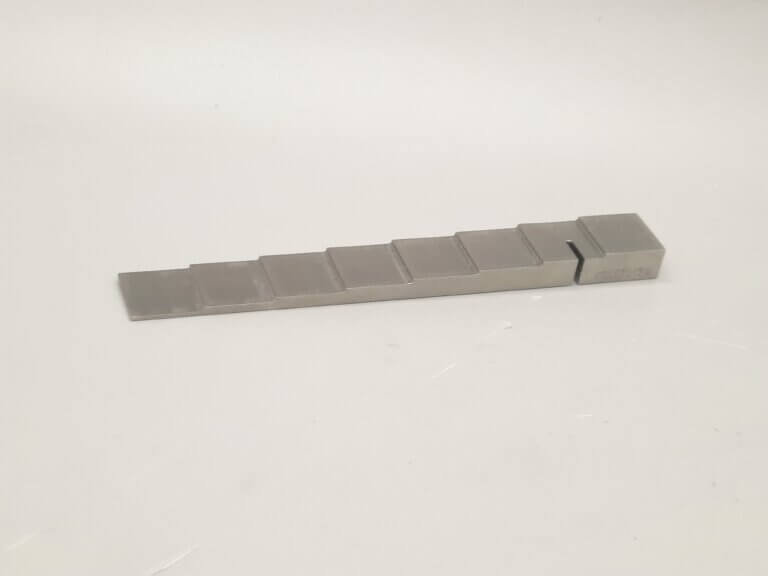

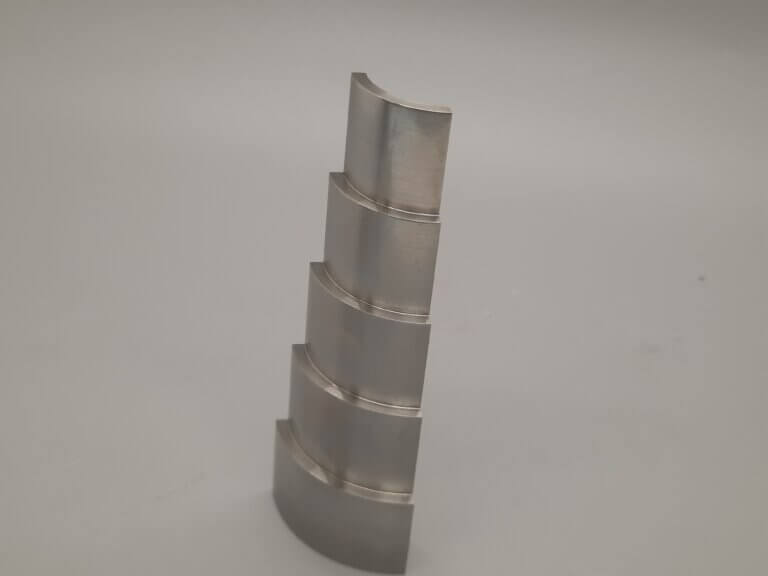

For time-based calibration with thickness measuring compression probes. 8 Steps from 1mm to 8mm. Plus thicknsess step of 15mm and notch at 20mm depth.

BS EN ISO 16946:2017

Tolerances ±0.1mm
Step Tolerances ±0.05mm

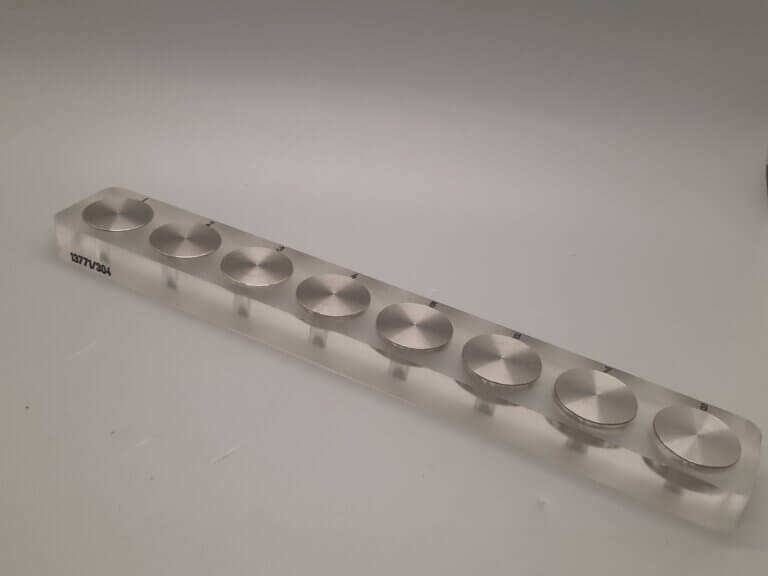

Generally as a LSW with 25mm diameter inserts mounted in lastic 8 steps from 1mm to 8mm.
Also available in other step sizes.

Tolerances ±0.1mm

0.2mm, 05mm and 1mm deep notches.
Supplied in any material required

Tolerances ±0.1mm

Setting sensitivity levels for weld testing. Sizes and locations of flaws are dependent on weld thickness. Metric or Imperial.

ASME V Non-Piping T-4342.1

Tolerances ±0.1mm

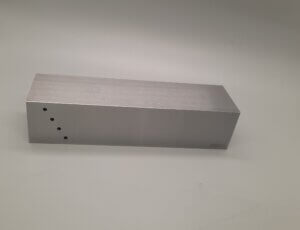

Setting DAC characteristics for shear wave and compression wave probes. Flaws typically 3mm diameter holes at 20%, 40%, 60% and 80% of thickness.

BS EN ISO 17640:2018

Tolerances ±0.1mm

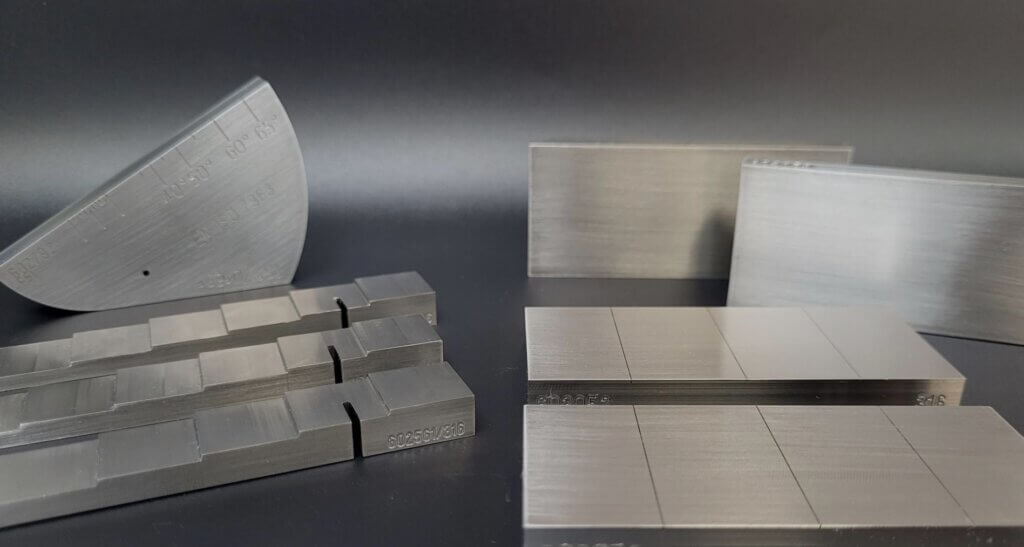

  • Calibration block material is ultrasonically tested before use.
  • Material heat treated as required and checked for acoustic characteristics.
  • Special purpose blocks manufactured to order.
  • Machined in a variety of materials, for most commonly – Carbon Steel, Stainless Steel, Aluminium, Duplex, Titanium

** Other Materials are available on request
